YONWOO CORPORATION
Manufacturer of Industrial Adhesive Tapes

Protection
Tape

YONWOO Protection tapes are manufactured in a clean room environment.
This optically clear type tape is for general purpose applications including display protection
where good wetting property and removability are required.
YONWOO Protection tapes are easy to convert and are suitable for various types of substrates.
Other colors, such as blue, red are also available.

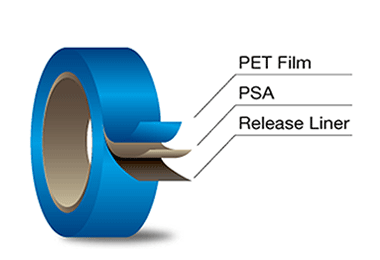

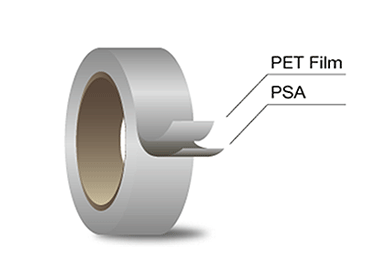

Construction

•
•

Features

• Excellent wetting ability and air bubble resistance
• High light-transmission rate
• Allows corrections during application
• Excellent die-cutting and slitting characteristics
• Leaves no residue after removal

Applications

• Used for temporary surface protection
• Production-aid during assembly and conversion process

Product Details

Model No.	Base	Color	Adhesive	Thickness (µm)	Peel Strength (gr/25mm)
UL05L	PET Film	Transparent	Silicone	58	2
ULM07L	PET Film	Transparent	Silicone	82	3
ULH07L	PET Film	Transparent	Silicone	80	3
ULH07L-BS	PET Film	Blue	Silicone	80	3
AS-ULH07L-1	PET Film	Blue	Silicone	80	3
L07	PET Film	Transparent	Silicone	83	5
L07L	PET Film	Transparent	Silicone	83	5
S7FL	PET Film	Transparent	Silicone	82	5
AS-DL07L-1	PET Film	Transparent	Silicone	81	6
AS-S7FGL-1	PET Film	Blue	Silicone	80	6
LMM07L	PET Film	Transparent	Silicone	83	7
ML07L	PET Film	Transparent	Silicone	82	10
YW-25A	PET Film	Transparent	Silicone	33	10
S7JL	PET Film	Transparent	Silicone	82	10
AS-ML07L	PET Film	Transparent	Silicone	83	10
S7KL	PET Film	Transparent	Silicone	82	16
MH07L	PET Film	Transparent	Silicone	83	17
H07L-CB2	PET Film	Blue	Silicone	92	18
H07L	PET Film	Transparent	Silicone	89	26
T03C	PET Film	Transparent	Silicone	48	28
R25L	PET Film	Red	Silicone	33	33
HD07L	PET Film	Transparent	Silicone	83	50
S03A	PET Film	Transparent	Silicone	52	58
HF07L	PET Film	Transparent	Silicone	83	80
HH07L	PET Film	Transparent	Silicone	85	150
HH07L-CB	PET Film	Blue	Silicone	86	150
K20A	PET Film	Transparent	Silicone	39	200
HU07L	PET Film	Transparent	Silicone	90	300
UH03	PET Film	Transparent	Silicone	47	700

These values are presented for comparison purposes and do not represent a guarantee by the manufacturer.
It is desirable for the customer to carry out his own test of suitability for the particular application.
