- Double-sided PET Film Tape
- Home PRODUCTS PET Film Tape
Double-sided
PET Film Tape
PET Film Tape
Double-coated tape with acrylic or silicone adhesive on PET film carrier. This kind of tape
provides strong bonding to a wide variety of materials. The dimensional stability of PET film
offers an excellent die-cutting performance.

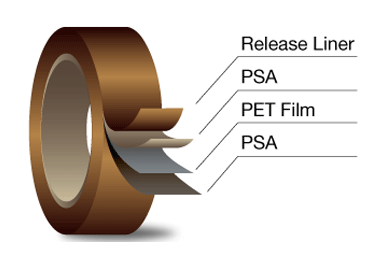

- Construction
-
* PSA: Pressure sensitive adhesive
-
Features
- Transparent / black PET film carrier
- Thickness ranging from 10μm to 300μm
- Excellent die-cutting and slitting characteristics
-
Applications
- Components mounting for mobile devices and electronics
- Fixing of LCD pads and displays
- Attaching of emblems and labels
- Meets a variety of specifications in production aid process
- Product Details
-
Model No. Base Color Adhesive Thickness
(µm)Peel Strength
(kg/25mm)5352 PET Film Transparent Acrylic 20 1.1 5353GC PET Film Transparent Acrylic 30 1.3 5351B PET Film Transparent Acrylic 50 1.6 5356 PET Film Transparent Acrylic 60 1.7 5356PLA PET Film Transparent Acrylic 60 1.7 5356W PET Film Transparent Acrylic 60 1.0 / 2.8 5308 PET Film Transparent Acrylic 80 1.5 5308PLA PET Film Transparent Acrylic 80 1.5 5335 PET Film Transparent Acrylic 100 1.8 5335PLA PET Film Transparent Acrylic 100 1.8 5335W PET Film Transparent Acrylic 100 2.0 / 3.3 5316KA PET Film Transparent Rubber 150 3.6 5312 PET Film Transparent Acrylic 160 2.9 5316A PET Film Transparent Acrylic 170 2.1 5316F PET Film Transparent Acrylic 200 3.7 5338T PET Film Transparent Acrylic 200 2.6 5320F PET Film Transparent Acrylic 200 2.1/3.0 5318A PET Film Transparent Acrylic 200 2.6 5331G PET Film Black Acrylic 30 1.1 5331F PET Film Black Acrylic 50 1.5 5331A PET Film Black Acrylic 100 1.7 5331B PET Film Black Acrylic 150 2.5 5331C PET Film Black Acrylic 200 2.7 These values are presented for comparison purposes and do not represent a guarantee by the manufacturer.
It is desirable for the customer to carry out his own test of suitability for the particular application.
