YONWOO CORPORATION
Manufacturer of Industrial Adhesive Tapes

Double-sided
Differential
Tape

Used for specific applications, YONWOO differential tape can be roughly divided into two types.
A double-sided tape with a different adhesive (acrylic/silicone) and with a different peel
strength on each side.
PET film carrier offers excellent dimensional stability.

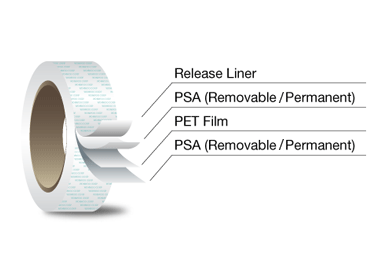

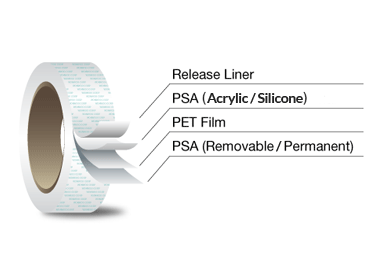

Construction

•
•

* PSA: Pressure sensitive adhesive

Features

• Different property on each side
• Excellent die cutting and converting process capability
• Clean removability

Applications

• Fixing wrap-guard film during transportation of
  new car and storage in open-air yard
• Fixing temporary car protector
• Bonding Silicone rubber
• Temporary mounting/attaching/fixing signs,
  labels and panels
• Attachment of plastic card in mail delivery
• Production aid during assembly and conversion process

Product Details

Model No.	Base	Color	Adhesive	Thickness (µm)	Peel Strength (gr/25mm)
532AN-50	PET Film	Transparent	Acrylic	55	1000 / 40
532AN-50A	PET Film	Transparent	Acrylic	55	1300 / 15
532AN-50K	PET Film	Transparent	Acrylic	55	1100 / 400
532AN-80	PET Film	Transparent	Acrylic	80	2000 / 40
5361W	PET Film	Transparent	Acrylic	80	600 / 1900
532AN	PET Film	Transparent	Acrylic	100	1900 / 600
532AN-100	PET Film	Transparent	Acrylic	100	2000 / 40
532C	PET Film	Transparent	Acrylic	110	70 / 1900
532AP	PET Film	Transparent	Acrylic	130	2000 / 1000
532AN-160	PET Film	Transparent	Acrylic	150	2300 / 300

Model No.	Base	Color	Adhesive	Thickness (µm)	Peel Strength (gr/25mm)
H38AL	PET Film	Transparent	Silicone/Acrylic	83	28 / 2000
1310TC	PET Film	Transparent	Silicone/Acrylic	100	1400 / 2500
S02AA	PET Film	Transparent	Silicone/Acrylic	102	60 / 3500

These values are presented for comparison purposes and do not represent a guarantee by the manufacturer.
It is desirable for the customer to carry out his own test of suitability for the particular application.
